Products Eleganza 2

Eleganza 2

Linet General Ward Bed

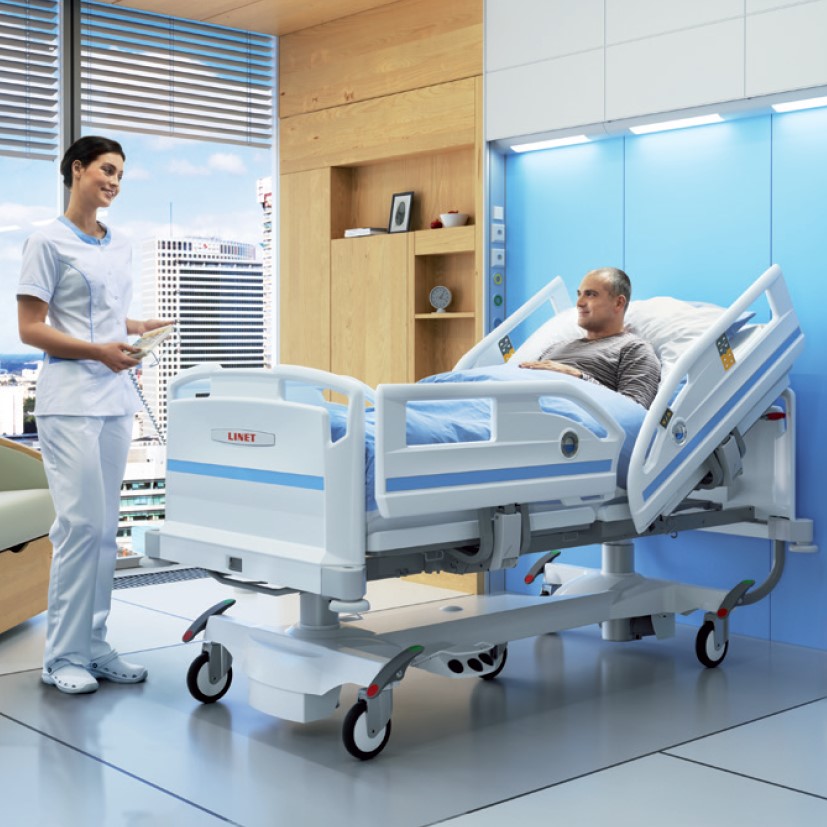

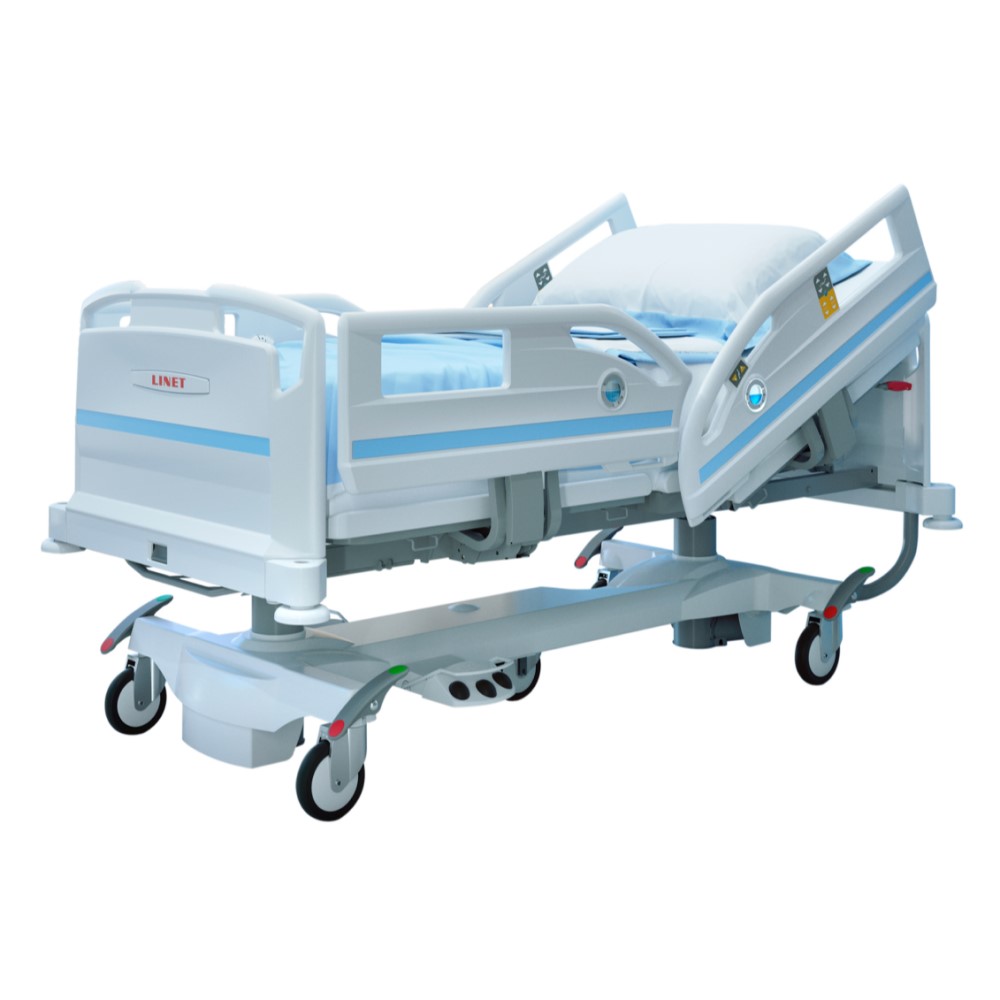

The LINET Eleganza 2 pushes the boundaries of bed design in terms of safety, quality of workmanship and innovation. The LINET Eleganza 2 is the first bed of its kind so has set the standard by defining the genuinely modern bed system. Containing sophisticated functions, the smart features of the LINET Eleganza 2 are now accessible to the broad spectrum of healthcare environments. The combination of practicality and beauty make the LINET Eleganza 2 a bed which will meet the needs and expectations of each hospital ward. The LINET Eleganza 2 makes demanding day-to-day patient care easier and thanks to its modern design, it shifts the perception of care provided to a far higher level.

Supports Mobilisation

Increased space beneath the siderail in the lowered position simplifies mobilisation allowing the patient to place their feet directly below their centre of gravity for the optimum standing position with less effort.

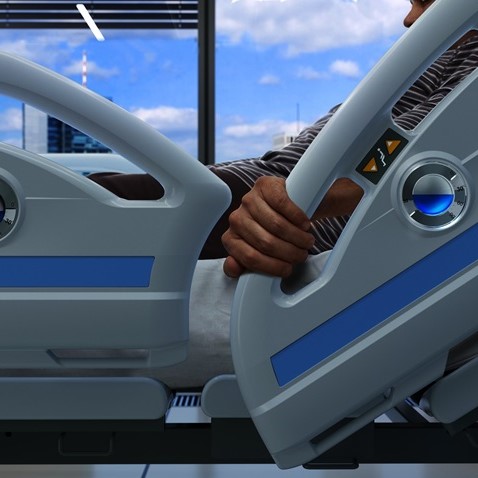

Unique handrail design is perfectly contoured for comfortable and safe support during bed exit in all backrest positions. Mobi-Lift button integrated into siderails, lifts the mattress platform and enables comfortable and safe lift control during mobilisation allowing patient to comfortably mobilise from the bed.

Maximum safety

The Eleganza 2 offers safety without compromise. The siderails guarantee a high level of protection against a fall and a number of other safety features make the Eleganza 2 a bed with the highest possible level of safety.

Patented liquid-filled angle indicators accurately and clearly indicate the tilt of the backrest on the head siderails and the mattress platform tilt on the foot siderails. Additionally the angle indicators provide safe position signaling with the option of a white backlight which changes to green when the bed is at the safe (lowest) position.

Undercarriage light helps with the patient orientation in the room, overnight and patient safety is further enhanced with a brake alarm where the bed automatically emits a audible signal when the bed is left unbraked while the main power cable is connected.

Any Questions?

Give us a call: 1300 303 603

Twin column construction The telescopic columns are a essential design of the Eleganza 2 and offers many advantages. The electric lifting units ensure complete stability allowing height adjustment of the bed.

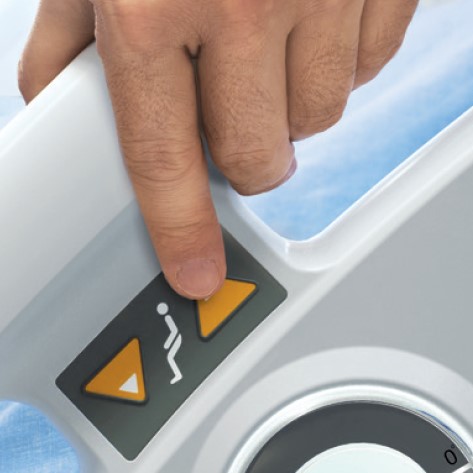

Mobi-Lift button Integrated into siderail, lifts the mattress platform and enables comfortable and safe lift control during mobilisation.

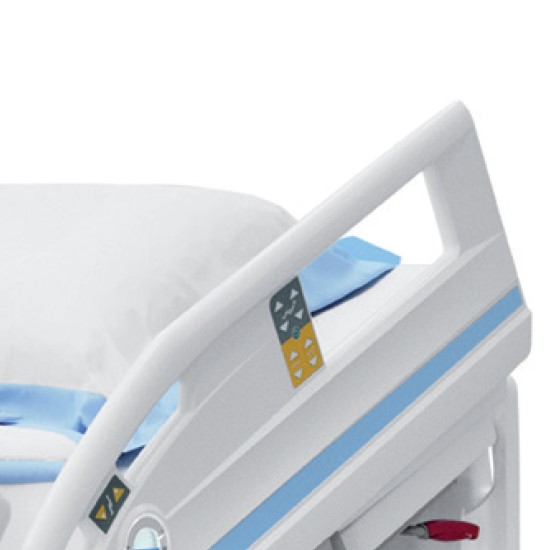

Soft-drop siderails with locking mechanism Softens the effect of the siderail´s movement. While double action release reduces the likelihood of an unintentional release.

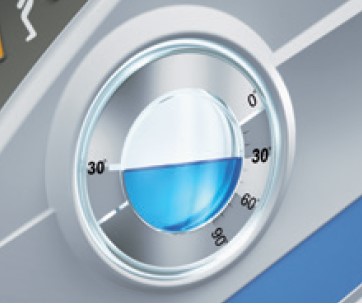

Patented liquid filled angle indicators on siderails Accurately and clearly indicate the tilt of the backrest on the head siderails and the mattress platform tilt on the foot siderails
Easy access CPR release mechanism Is easily accessible from both sides of bed ensuring quick release for lowering of backrest.

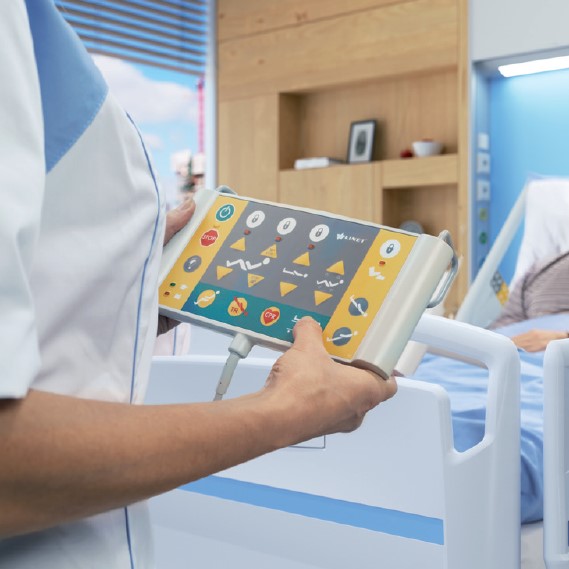

Flexible control options For ease of ergonomic bed positioning and patient independence.
Electric protection against overload Bed will automatically stop when an actuator is overloaded.
Safety GO button Enhances patient safety by preventing unintentional bed positioning. The GO button activates the bed controls for 3 minutes.
One-button positioning for key functions Quick and efficient positioning for Auto-Contour, Trendelenburg/ Reverse Trendelenburg, Cardiac Chair and CPR.
Brake alarm The bed automatically emits a audible signal when the bed is left unbraked while the main power cable is connected enhancing patient safety from unbraked bed.
Integral bed extension of 320mm Flexible use for taller patients.
Lightweight & easily removable mattress platform Ensures ease of infection control.
Activated 5th castor Easier transport of the bed it allows for tight turns, also providing significant reduction in the force needed to turn the bed.
Optional foot controls Allow practical and easy adjustment of the height and examination position.



Height Range 395mm to 775mm
Overall Length 2235mm
Overall Width 995mm
Bed Extension 0 to 320mm
Mattress Platform Length 2000mm
Mattress Platform Width 900mm
Trendelenburg 16°
Reverse Trendelenburg 16°
Safe Working Load (SWL): 250 kg
Max Patient Weight: 185 kg
Total Bed weight: 156 kg (* Depending on configuration)
