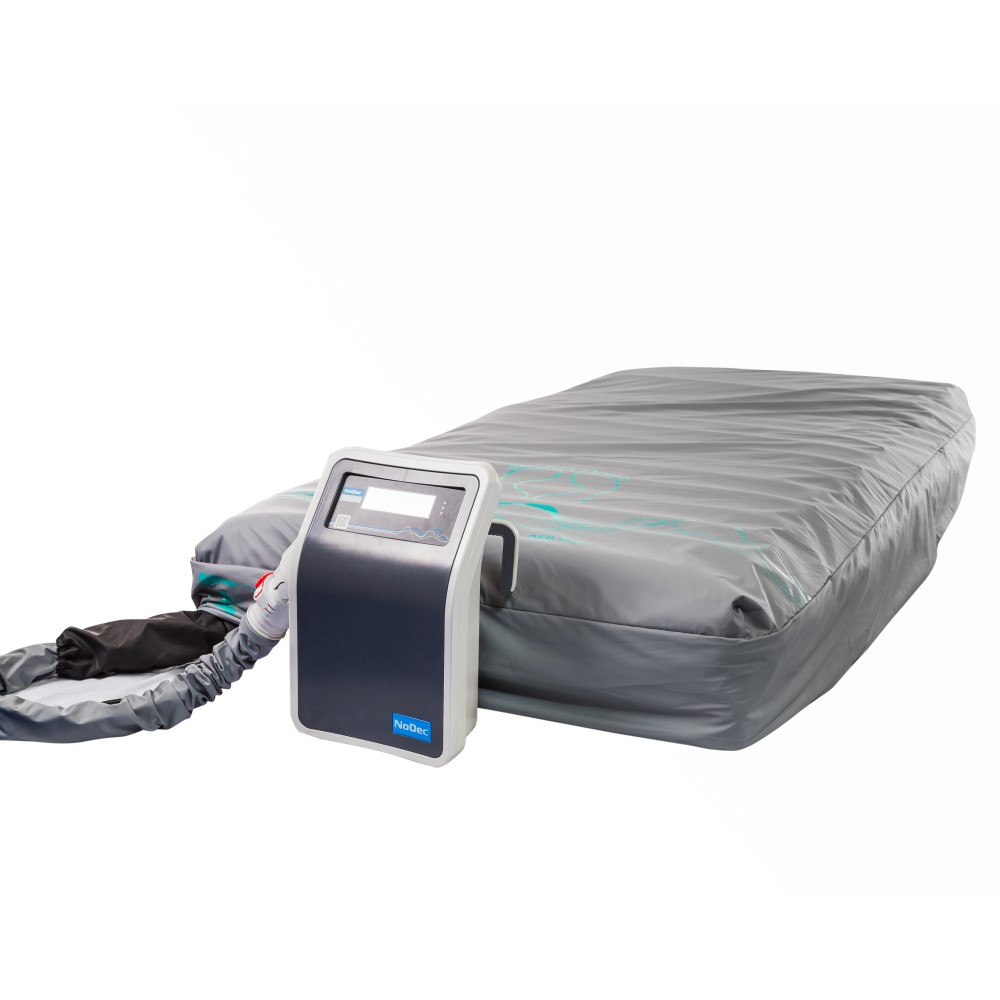

NoDec 3 Airstream
Clinically Proven Pressure Elimination Therapy
The NoDec 3 Airstream is a next generation 3-cell cycle Airwave Therapy System which provides an evolution in features, performance and clinical efficacy.
Designed to replicate the body’s natural spontaneous movement the NoDec 3 Airstream is clinically demonstrated to provide complete pressure elimination at regular intervals, thus ensuring that it is perfect for the prevention and accelerated healing of all grades of pressure injuries irrespective of mobility.
Proven healing rates
Clinical studies have shown the successful outcomes achieved using 3-cell technology with proven wound healing and fewer new pressure injuries when compared with alternative dynamic mattresses. A study by Wallenstein showed that “on average, the wound size of all pressure injury was reduced by 50% in 4 weeks” using 3-cell technology.
Advanced Total Pressure Elimination
Advanced features of the NoDec 3 Airstream such as a double layer of ultrasonically welded cells which synchronously inflate and deflate and active vacuum assisted cell deflation combine to provide frequent periods of complete pressure elimination which stimulates reactive hyperaemia and promotes blood flow thereby maximising pressure relief to the high risk areas such as the sacrum, trochanter and heels.
7.5 minute cycle
The 7.5 minute cycle time of the NoDec 3 Airstream facilitates pressure relief for up to 8 times an hour. This optimum frequency is firmly based on research, which indicates that if spontaneous movement during sleep exceeds 8 times each hour, tissue damage is unlikely to occur.
Give us a call: 1300 303 603
|Active vacuum assisted cell deflation||Provide frequent periods of complete pressure elimination which stimulates reactive hyperaemia and promotes blood flow.|
|Powerful linear piston compressors||Provide optimum performance of cell alternation even against back pressure of patient’s weight.|
|Ultrasonically welded cell structure||All cells in each layer are ultrasonically welded together to eliminate air cell encroachment and allow each deflating cell to efficiently retract away from body contact.|

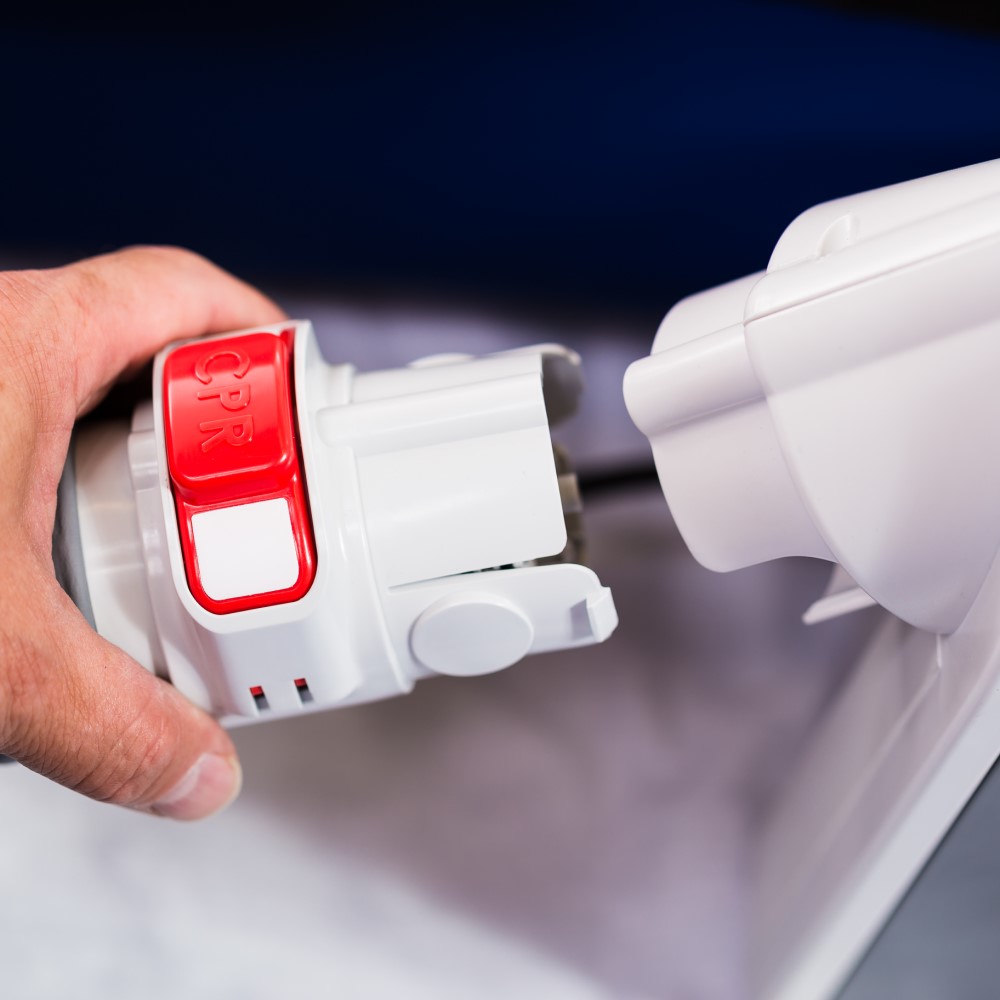

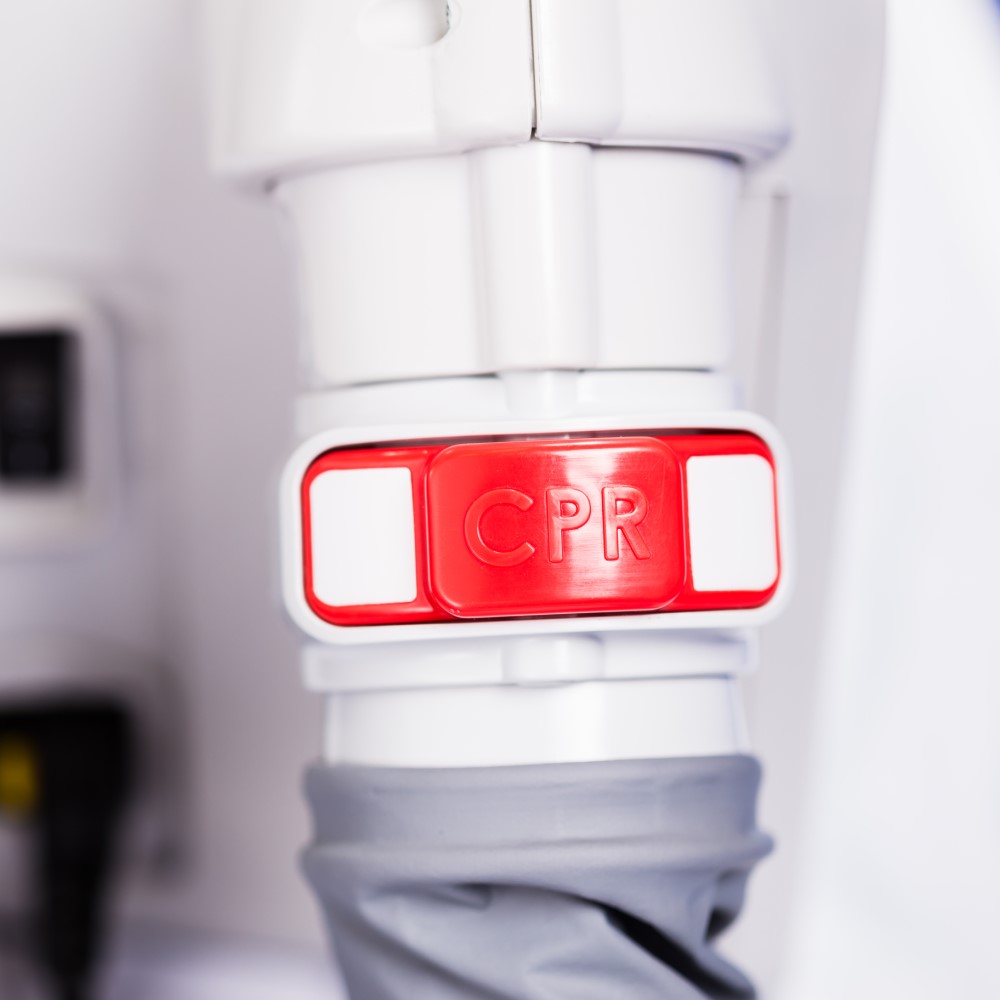

|Easily accessible CPR facility||Intuitive, always visible and accessible CPR release valve located on umbilical provides rapid deflation in approx. 10 seconds|
|Integral side formers||Permanently inflated side formers provide a firm mattress edge to ensure patient stabilisation and fall prevention during exits or transferring to a trolley/chair.|
|Static head cells||Top 3 cells in the head zone of the mattress remain inflated (static) providing patient comfort, support and stability.|

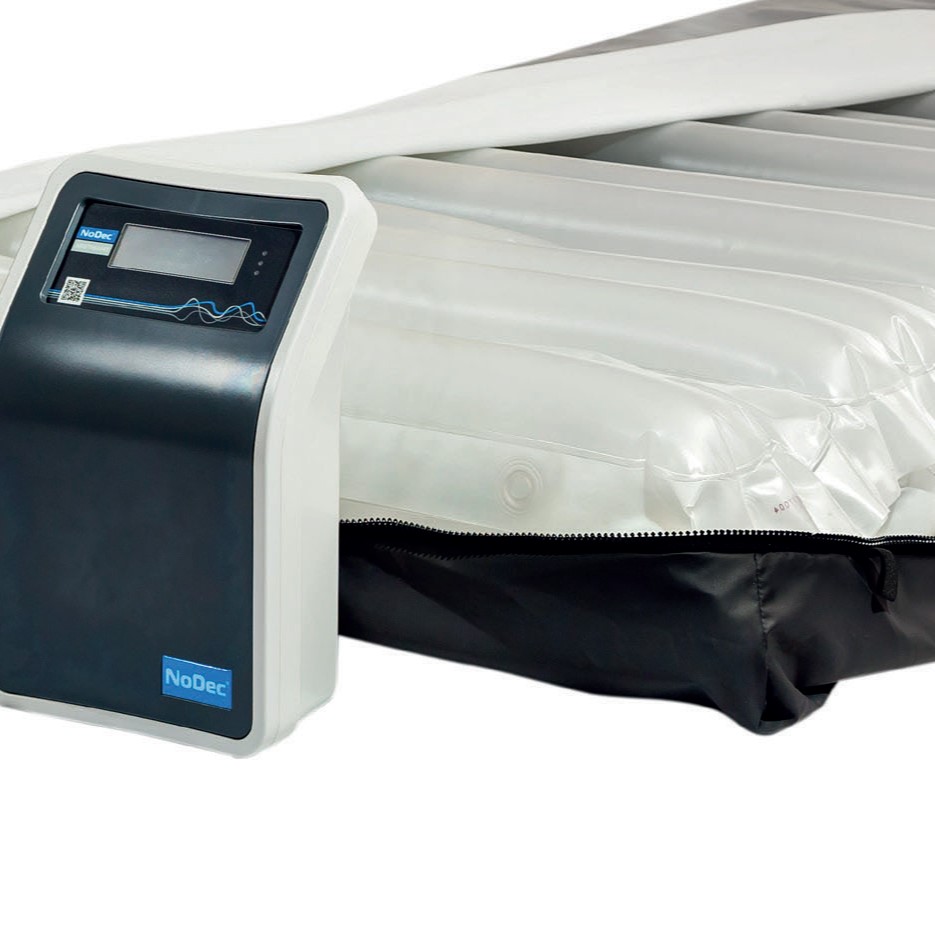

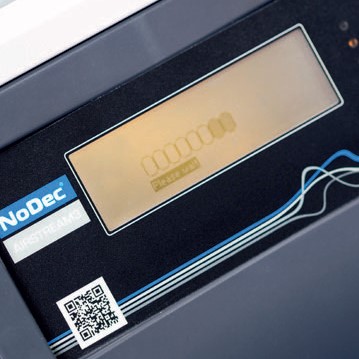

|Ergonomic pump with touch screen controls||Provide efficient access to controls and functions of the system for nursing care.|
|Auto-control panel lockout||Enhances patient safety and reduces user error.|
|Auto-adjustment||Automatically adjusts pressure settings in response to patient weight and position to optimise pressure relief and ensure that staff are not burdened with difficult product set-up.|
|Comfort control||Adjustable comfort control to Firm, Medium and Soft settings provide nursing staff with the ability to adjust air cell inflation pressures in either Static or Dynamic mode to suit individual patient comfort or clinical requirements.|
|Auto-timed Static mode||Provides a firm and stable surface for essential nursing procedures such as physiotherapy and wound cleaning. A safety automatic return to Dynamic mode after 30 minutes ensures that patients are not put at risk of pressure damage.|
|30-hour Transport mode||Easy to operate one way valve lets mattress remain inflated for at least 30 hours and also facilitates patient/bed movement without unnecessary risk to patient.|
|Audible and visual alarms||A sophisticated set of audible and visual alarm functions provide enhanced patient safety and ensures peace of mind for nursing staff.|
|Cable management system||Convenient power cable storage to ensure safety by preventing it becoming a trip hazard and also avoid cable damage.|
|Dartex cover with welded seams||Soft, easy to clean, waterproof Dartex cover provides a complete barrier against viruses and blood, minimising infection control risks.|
|Unique anti-hammocking cover||Unique pre-tensioned design ensures that the cover conforms tightly to the cell shape thereby eliminating hammocking across the deflated cell and optimising the zero pressure phase of the cycle.|
|Risk Category||Very High Risk|
|Cell Design||Integrated cell structure|
|Therapeutic Safe Working Load||250kg|
|Mattress Dimensions||Standard width: 1900mm x 880mm x 230mm (L x W x H)|
|Narrow width: 1900mm x 800mm x 230mm (L x W x H))|
|Pump Dimensions||350mm x 150mm x 380mm (L x W x H)|
|Product Weight||Mattress: 8.2kg Power Unit: 6.8kg|

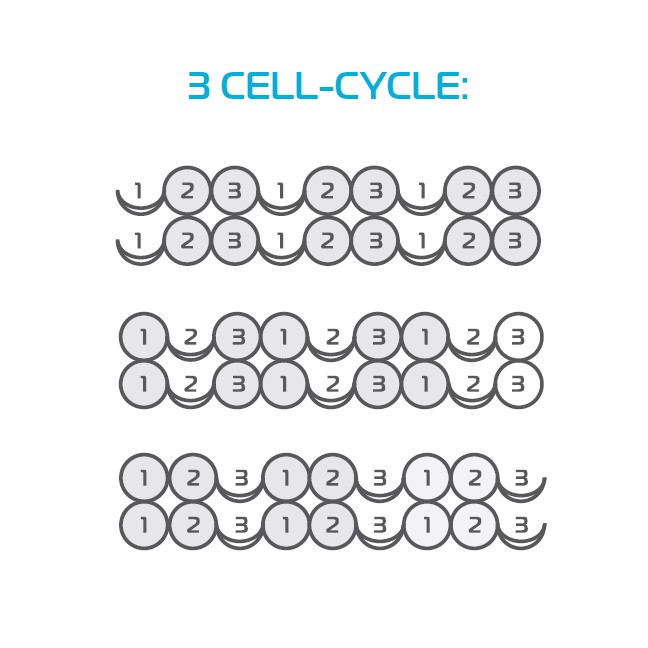

|Cycle Time||7.5 minutes (1-in-3 cell cycle)|
|Cycle Control||Microprocessor controlling solenoid valves|
|Supply Voltage||230V, 50 Hz|
|Power Rating||Max – 100 Watts|
|Electrical Safety||Class II, Type B|
